Termet
Innovating tools, customized and specifically designed to meet customer expectations. Leader in the world market, TERMET has started for many years to propose innovative products adequate for slaughterhouse requirements. The company designs and fabricates tools with advanced technologies, fully specific to food industry requirements.
TERMET is so able to provide customized tools such: Matador stunning equipment, weasand ligature systems, sterilizers, washing tools, and consumables…
All the equipment is reliable, robust and specifically designed for slaughterhouses. They are designed to improve safety and hygienic processes.
Demonstration Videos
Ergonomics Product Range

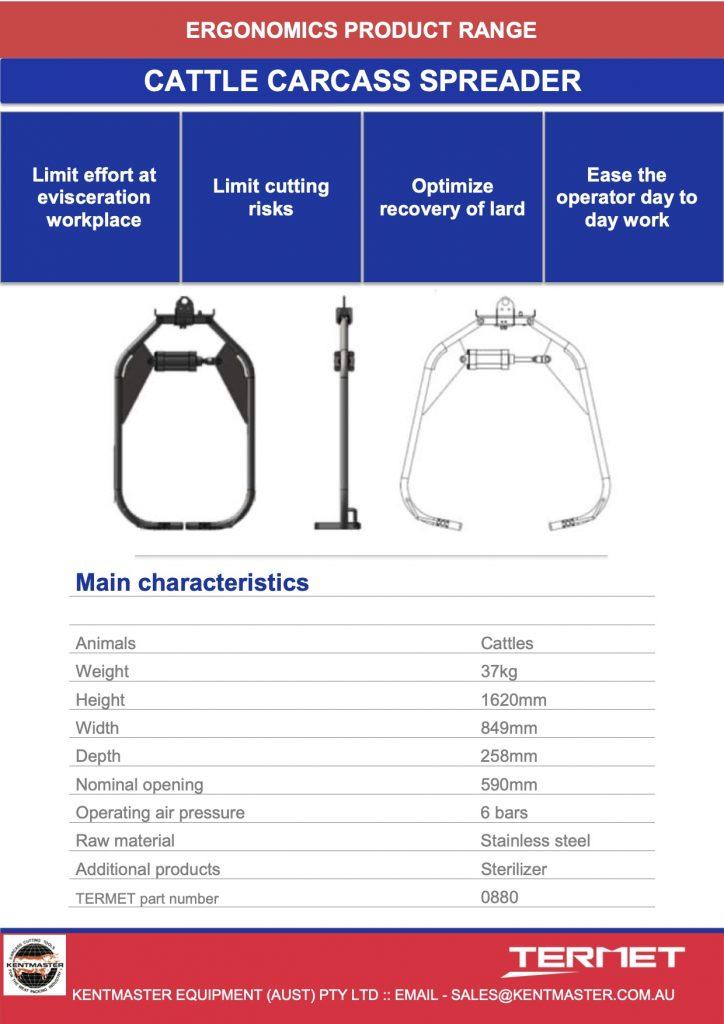

Cattle Carcass Spreader
- Limit effort at evisceration workplace
- Limit cutting risks
- Optimize recovery of lard
- Ease the operator day to day work
Main characteristics
| Animals | Cattles |
|---|---|
| Weight | 37kg |
| Height | 1620 mm |
| Width | 849 mm |
| Depth | 258 mm |
| Nominal opening | 590 mm |
| Operating air pressure | 6 bars |
| Raw material | Stainless steel |
| Additional products | Sterilizer |
| TERMET part number | 0880 |

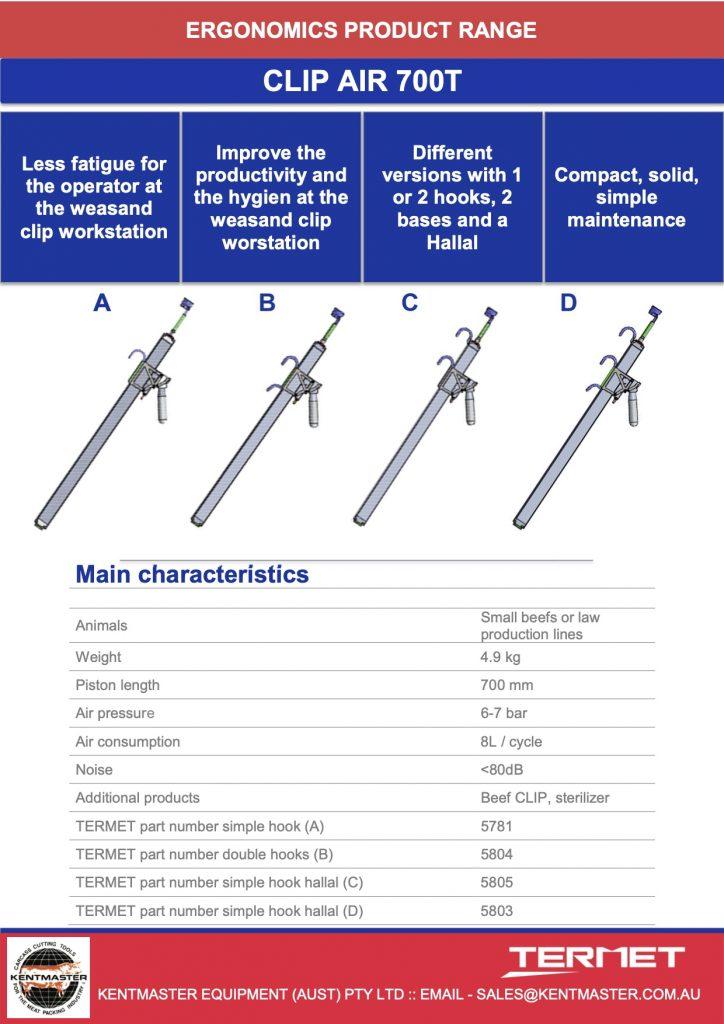

Clip AIR 700T
- Less fatigue for the operator at the weasand clip workstation
- Improve the productivity and the hygien at the weasand clip workstation
- Different versions with 1 or 2 hooks, 2 bases and a Hallal
- Compact, solid, simple maintenance
Main characteristics
| Animals | Small beefs or law production lines |
|---|---|
| Weight | 4.9 kg |
| Piston length | 700 mm |
| Air pressure | 6-7 bar |
| Air consumption | 8 L/cycle |
| Noise | < 80 dB |
| Additional products | 6 bars |
| Raw material | Stainless steel |
| Additional products | Beef CLIP, Sterilizer |
| TERMET part number simple hook (A) | 5781 |
| TERMET part number double hooks (B) | 5804 |
| TERMET part number simple hook hallal (C) | 5805 |
| TERMET part number simple hook hallal (D) | 5803 |
Sterilizer Product Range

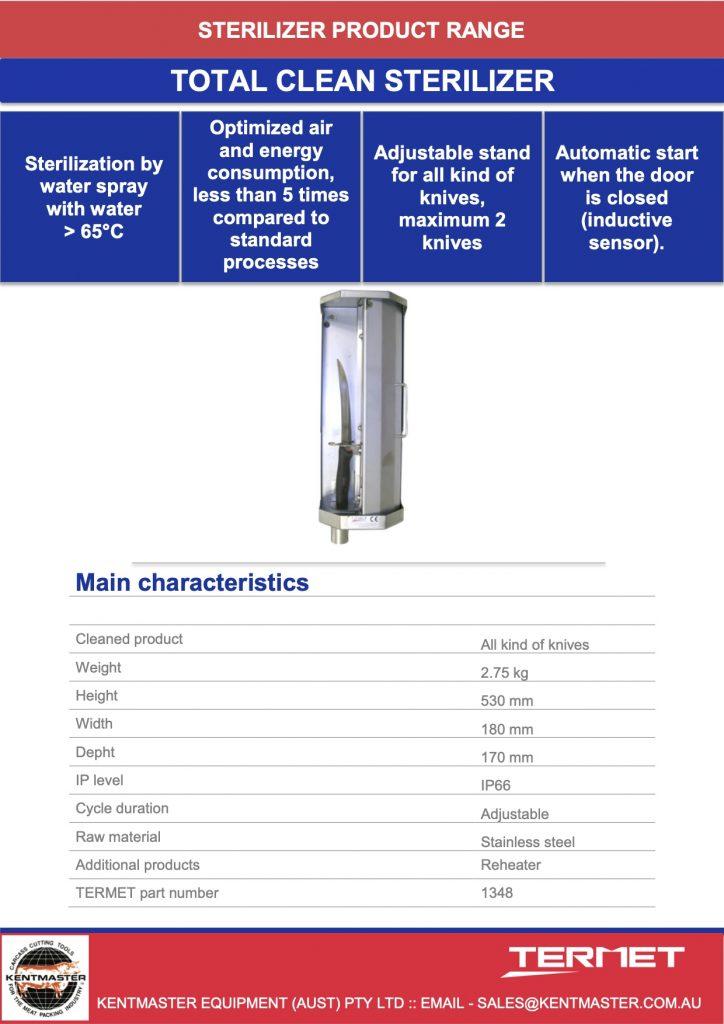

Total Clean Sterilizer
- Sterilization by water spray with water > 65oC
- Optimized air and energy consumption, less than 5 times compared to standart processes
- Adjustable stand for all kind of knives, maximum 2 knives
- Automatic start when the door is closed (inductive sensor)
Main characteristics
| Cleaned product | All kind of knives |
|---|---|
| Weight | 2.75 kg |
| Height | 530 mm |
| Width | 180 mm |
| Depth | 170 mm |
| IP level | IP66 |
| Cycle duration | Adjustable |
| Raw material | Stainless steel |
| Additional products | Reheater |
| TERMET part number | 1348 |

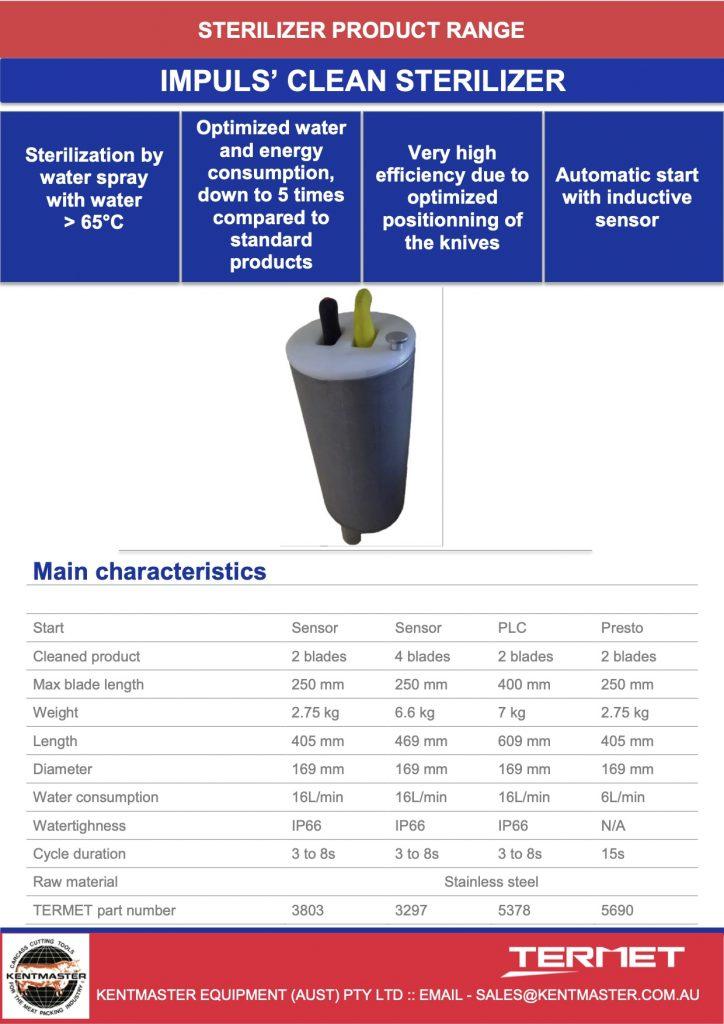

Impuls’ Clean Sterilizer
- Sterilization by water spray with water > 65oC
- Optimized water and energy consumption, down to 5 times compared to standard products
- Very high efficiency due to optimized positionning of the knives
- Automatic start with inductive sensor
Main characteristics
| Start | Sensor | Sensor | PLC | Presto |
|---|---|---|---|---|
| Cleaned product | 2 blades | 4 blades | 2 blades | 2 blades |
| Max blade length | 250 mm | 250 mm | 400 mm | 250 mm |
| Weight | 2.75 kg | 6.6 kg | 7 kg | 2.75 kg |
| Length | 405 mm | 469 mm | 609 mm | 405 mm |
| Diameter | 169 mm | 169 mm | 169 mm | 169 mm |
| Water consumption | 16 L/min | 16 L/min | 16 L/min | 6 L/min |
| Watertighness | IP66 | IP66 | IP66 | IP66 |
| Cycle duration | 3 to 8s | 3 to 8s | 3 to 8s | 15s |
| Raw material | Stainless steel | |||
| TERMET part number | 3803 | 3297 | 5378 | 5690 |
Contact us for more information E: sales@kentmaster.com.au.
Matador Stunners
A captive bolt stunning gun kills the animal and reduces it instantly uncinscious without causing pain. A captive bolt gun has a steel bolt that is powered by either compressed air or a blank cartridge. The bolt is driven into the animal’s brain. It has the same effect on the animal as a firearm with a live bullet. After the animal is shot the bolt retracts and is reset for the next animal. A captive bolt gun is safer than a firearm.
There have been some questions about whether or not a captive bolt actually kills an animal. Practical experience in slaughter plants indicates that cattle shot correctly with a penetrating captive bolt have irreversible damage to their brain and they will not revive. If a non-penetrating captive bolt is used the animal may revive unless it is bled promptly. More and more research is showing that non-penetrating captive bolt is not recommended for mature cattle or mature swine.
